Fishing tools
Your present position:Home > Products > LLF Type Reverse Circulation Junk Basket
LLF Type Reverse Circulation Junk Basket

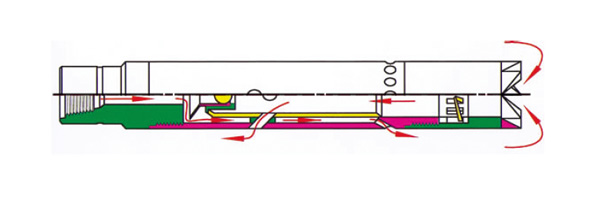

    The LLF type reverse circulation junk basket is used to retrieve all types of small junk objects such as cone, cutter, hand tool and junks from the bottom hole. During drilling operation , it produces a local reverse circulation of fluid at well bottom so as to effect a complete recovery of junk in the junk basket. Especially when PDC bit is used , cleaning well bottom by the tool becomes very necessary to ensure the bit with a normal application. The reverse circulation junk basket therefore becomes an essential tool in petroleum , geology exploration and drilling engineering.

Technical parameters and specifications

Type Suitable hole size
mm (in)
Ball diameter
(mm)
Max.catch diameter
(mm)
Thread connection
API
LLF102 104.8-114.3(4 1/4"-4 1/2") 30 64.5 NC26
LLF114 117.5-127(4 5/8"-5") 30 78 NC26
LLF130 142.9-152.4(5 5/8"-6") 42 95.5 NC31
LLF146 155.6-165(6 1/8"-6 1/2") 42 112 NC38
LLF159 168-187.3(6 5/8"-7 3/8") 42 121 NC38
LLF178 190.5-209.5(7 1/2"-8 1/4") 42 132 4 1/2REG
LLF200 212.7-241.3(8 3/8"-9 1/2") 42 154 NC50
LLF219 231.7-260.3(9 1/8"-10 1/4") 50 166 NC50
LLF232 244.5-269.9(9 5/8"-10 5/8") 50 182 NC50
LLF245 254-279.4(10"-11") 50 192 NC50
LLF257 273-295.3(10 3/4"-11 5/8") 50 195.5 NC56
LLF286 320.6-346.1(12 5/8"-13 1/4") 50 228 6 5/8REG
LLF298 406.4-444.5(16"-17 1/2") 50 241 6 5/8REG
LLF381 406.4-444.5(16"-17 1/2") 50 318 7 5/8REG
